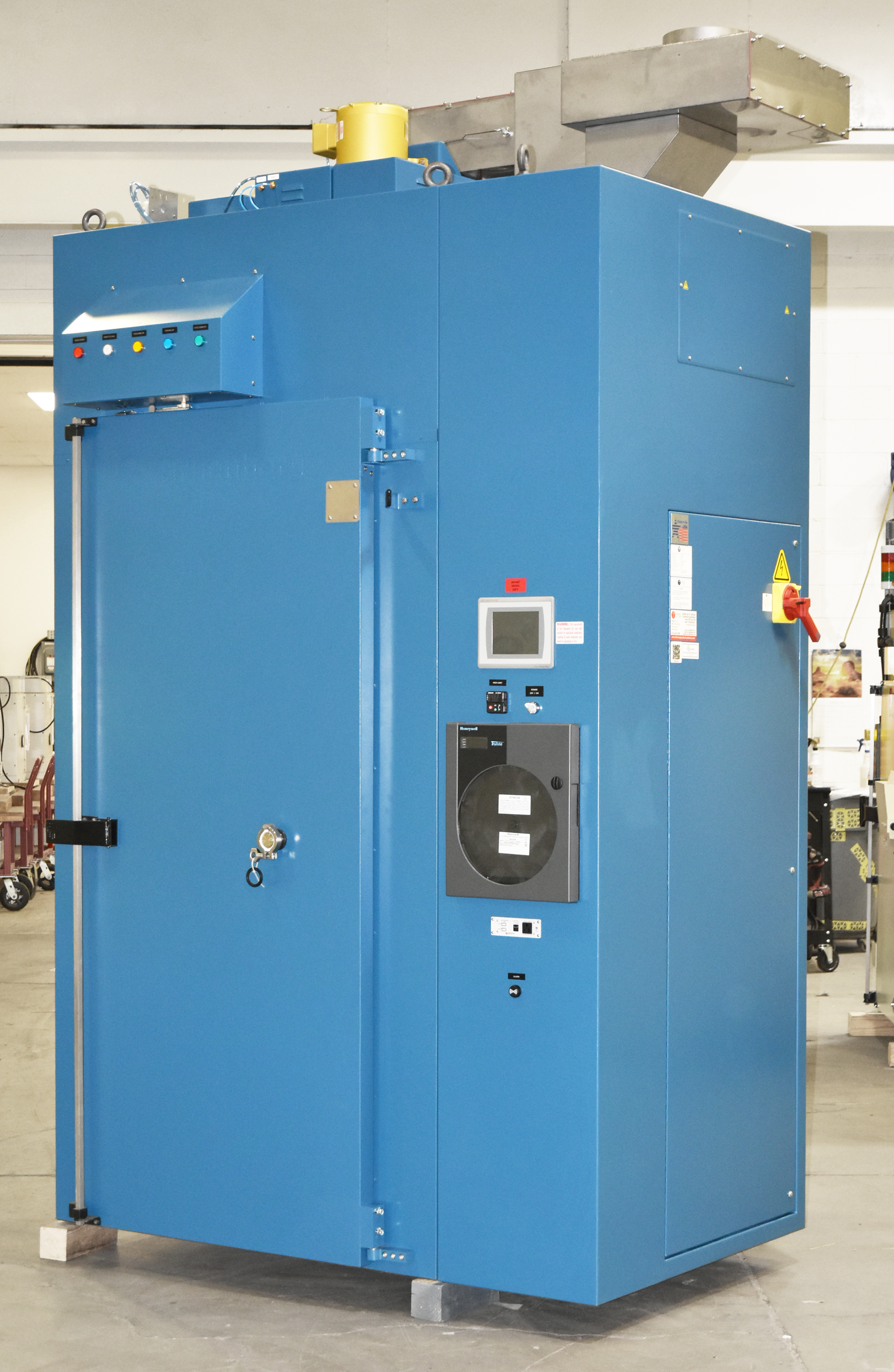

Gruenberg Ships One Truck-In Oven to the Medical Industry
Thermal Product Solutions, a global manufacturer of thermal-processing equipment, announced the shipment of a Gruenberg Truck-In Oven to the medical industry.
This oven has an operating temperature of 250ºF to 325ºF and has a maximum temperature of 450ºF. It has interior dimensions of 30” W x 59” D x 79” H and the interior chamber is made entirely out of stainless steel. It is insulated with mineral wool with the walls and ceiling having 4 inches of insulation. The exterior of the Truck-In Oven is made from cold rolled steel with exterior cabinet dimensions of 49.75” W x 67.63” D x 104.50” H.
All interconnecting struts on this Truck-In Oven are non-continuous from the inner to outer walls which keeps the exterior as cool as possible. It also is equipped with an automatic pneumatic lock which controls the door lock in a specific sequence. During the curing cycle, the door is locked. It automatically unlocks after it completes the cool-down cycle. In the event of an electrical loss of power, the door will remain locked. In the event of a pressure loss, the lock will hold its position. The machine has status lights throughout the cycle to indicate the lock or unlocked condition of the door.
The Truck-In Oven has a high circulation-volume of 3500 CFM, to keep a uniform heat distribution and to optimize efficiency; the airflow is horizontal within the work chamber.
“This unit is electrically heated and has heaters suspended in the plenum adjacent to the process chamber so that the product and operators are protected. Additionally, this unit features a high flow cooling feature which introduces 1700 scfm of filtered air into the chamber to cool the product and oven down in a very short period”
– Mike Schneck, Gruenberg Product Manager
Unique features of this Gruenberg Truck-In Oven include:
- A loading ramp supplied with the unit
- An air intake blower
- Seamless-tubular incolloy sheathed heaters that produce high energy and supply electrical heat
- Heaters wired with double nut connections
