Gruenberg Trucks, Transfer Carts and Trays

Product details

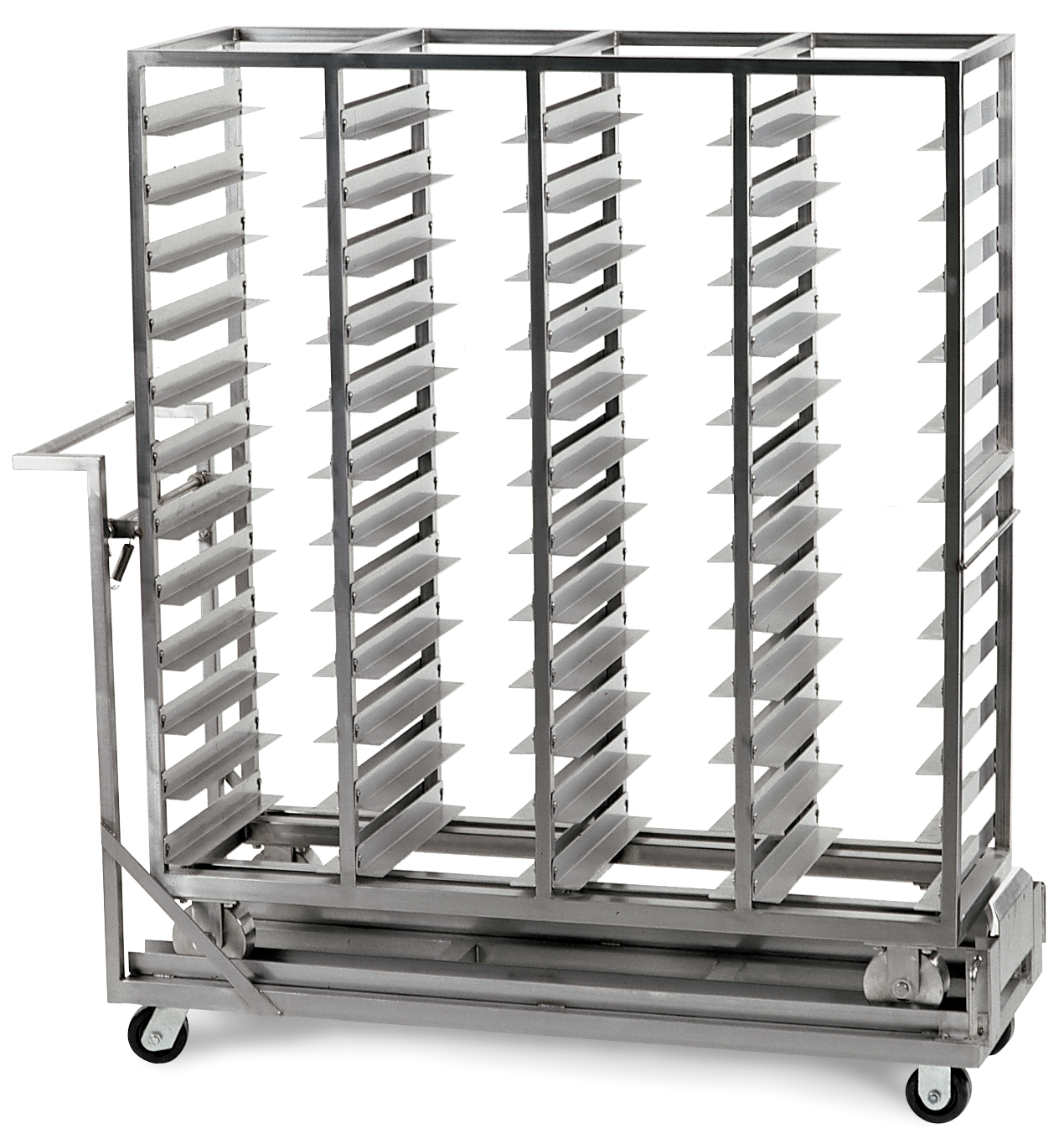

Trucks

Trucks provide a quick and efficient way to load and unload products. Single, double, triple, and quadruple bay trucks are available to match any product load. To simplify loading and unloading, a front or side loaded truck may be specified.

Transfer Carts

Trucks can be transported to and from sterilizers and dryers by transfer carts. The transfer carts keep the trucks off the floor, reducing the amount of dirt or contamination entering the process chamber. A spring loaded latch and truck guides keep the truck secure during transportation. Power-assisted transfer carts are also available.

Transfer carts are constructed of type 304 stainless steel with a 2B finish. Two swivel and two stationary, non-marking casters are supplied to permit ease of Trucks, Transfer Carts and Trays movement and control. Loading the truck into the sterilizer or dryer is quick, easy, and safe. Simply line up the truck guides of the transfer cart with the truck guides of the process chamber, then lower the loading ramp located on the front of the transfer cart onto two steel pins on the process chamber floor. The transfer cart and process chamber are now locked together. Pull the spring latch on the back of the transfer cart to release the truck. Gently push the truck into the process chamber, raise the loading ramp, and close the door.

Trays

Solid Stainless Steel Trays

Solid trays are constructed of any type stainless steel. All seams are continuously heliarc welded and ground smooth.

Perforated Stainless Steel Trays

Perforated stainless steel trays typically have 3/8" diameter perforations on 11/2" centers. Larger and smaller sized perforations are available upon request.

Covered Stainless Steel Trays

Covered stainless steel trays are used with both sterilizers and granulation dryers. The covers protect the product from contamination and windage.

Trucks

Trucks provide a quick and efficient way to load and unload products. Single, double, triple, and quadruple bay trucks are available to match any product load. To simplify loading and unloading, a front or side loaded truck may be specified.

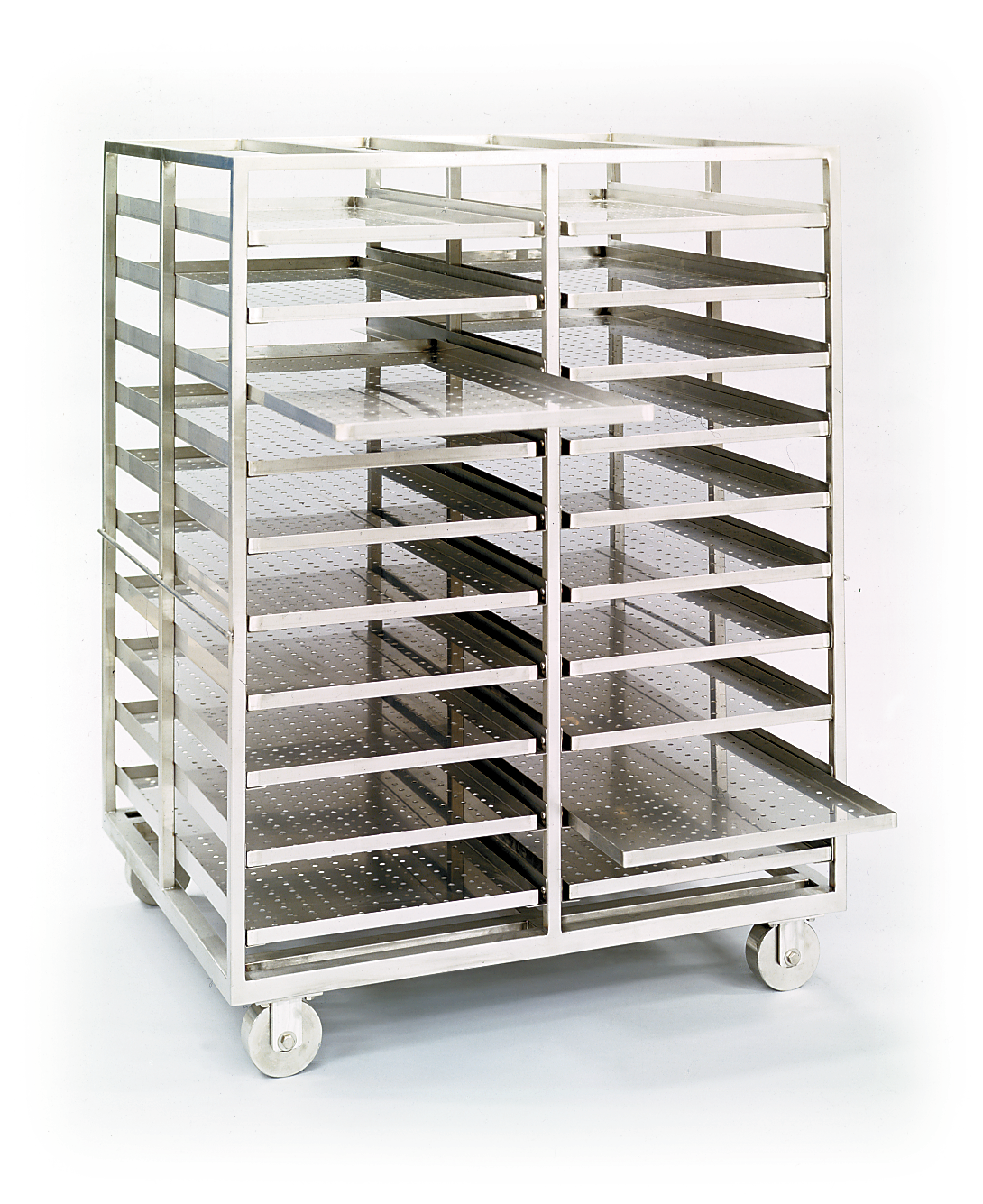

cart

Transfer Carts

Trucks can be transported to and from sterilizers and dryers by transfer carts. The transfer carts keep the trucks off the floor, reducing the amount of dirt or contamination entering the process chamber. A spring loaded latch and truck guides keep the truck secure during transportation. Power-assisted transfer carts are also available.

Transfer carts are constructed of type 304 stainless steel with a 2B finish. Two swivel and two stationary, non-marking casters are supplied to permit ease of Trucks, Transfer Carts and Trays movement and control. Loading the truck into the sterilizer or dryer is quick, easy, and safe. Simply line up the truck guides of the transfer cart with the truck guides of the process chamber, then lower the loading ramp located on the front of the transfer cart onto two steel pins on the process chamber floor. The transfer cart and process chamber are now locked together. Pull the spring latch on the back of the transfer cart to release the truck. Gently push the truck into the process chamber, raise the loading ramp, and close the door.

transfer cart

Trays



Solid Stainless Steel Trays

Solid trays are constructed of any type stainless steel. All seams are continuously heliarc welded and ground smooth.

solid tray

Perforated Stainless Steel Trays

Perforated stainless steel trays typically have 3/8" diameter perforations on 11/2" centers. Larger and smaller sized perforations are available upon request.

perforated tray

Covered Stainless Steel Trays

Covered stainless steel trays are used with both sterilizers and granulation dryers. The covers protect the product from contamination and windage.

covered tray 1covered tray 2



Request A Quote

Click here to request a quote for one of Gruenberg's sterilizers, dryers, or industrial ovens.

Trucks

Trucks provide a quick and efficient way to load and unload products. Single, double, triple, and quadruple bay trucks are available to match any product load. To simplify loading and unloading, a front or side loaded truck may be specified.

Transfer Carts

Trucks can be transported to and from sterilizers and dryers by transfer carts. The transfer carts keep the trucks off the floor, reducing the amount of dirt or contamination entering the process chamber. A spring loaded latch and truck guides keep the truck secure during transportation. Power-assisted transfer carts are also available.

Transfer carts are constructed of type 304 stainless steel with a 2B finish. Two swivel and two stationary, non-marking casters are supplied to permit ease of Trucks, Transfer Carts and Trays movement and control. Loading the truck into the sterilizer or dryer is quick, easy, and safe. Simply line up the truck guides of the transfer cart with the truck guides of the process chamber, then lower the loading ramp located on the front of the transfer cart onto two steel pins on the process chamber floor. The transfer cart and process chamber are now locked together. Pull the spring latch on the back of the transfer cart to release the truck. Gently push the truck into the process chamber, raise the loading ramp, and close the door.

Trays

Solid Stainless Steel Trays

Solid trays are constructed of any type stainless steel. All seams are continuously heliarc welded and ground smooth.

Perforated Stainless Steel Trays

Perforated stainless steel trays typically have 3/8" diameter perforations on 11/2" centers. Larger and smaller sized perforations are available upon request.

Covered Stainless Steel Trays

Covered stainless steel trays are used with both sterilizers and granulation dryers. The covers protect the product from contamination and windage.

Trucks

Trucks provide a quick and efficient way to load and unload products. Single, double, triple, and quadruple bay trucks are available to match any product load. To simplify loading and unloading, a front or side loaded truck may be specified.

cart

Transfer Carts

Trucks can be transported to and from sterilizers and dryers by transfer carts. The transfer carts keep the trucks off the floor, reducing the amount of dirt or contamination entering the process chamber. A spring loaded latch and truck guides keep the truck secure during transportation. Power-assisted transfer carts are also available.

Transfer carts are constructed of type 304 stainless steel with a 2B finish. Two swivel and two stationary, non-marking casters are supplied to permit ease of Trucks, Transfer Carts and Trays movement and control. Loading the truck into the sterilizer or dryer is quick, easy, and safe. Simply line up the truck guides of the transfer cart with the truck guides of the process chamber, then lower the loading ramp located on the front of the transfer cart onto two steel pins on the process chamber floor. The transfer cart and process chamber are now locked together. Pull the spring latch on the back of the transfer cart to release the truck. Gently push the truck into the process chamber, raise the loading ramp, and close the door.

transfer cart

Trays



Solid Stainless Steel Trays

Solid trays are constructed of any type stainless steel. All seams are continuously heliarc welded and ground smooth.

solid tray

Perforated Stainless Steel Trays

Perforated stainless steel trays typically have 3/8" diameter perforations on 11/2" centers. Larger and smaller sized perforations are available upon request.

perforated tray

Covered Stainless Steel Trays

Covered stainless steel trays are used with both sterilizers and granulation dryers. The covers protect the product from contamination and windage.

covered tray 1covered tray 2

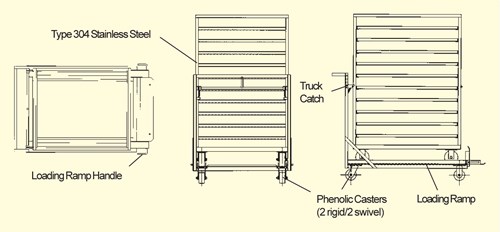

Single-Bay Truck (side loaded)

Single-bay trucks are used with small and medium sized sterilizers and dryers for maximum product loading. This truck can be used in medium size units if the product is light in weight.

single



Double-Bay Truck (front loaded)

Double-bay trucks can be used with small, medium, and large sterilizers or dryers depending upon product load. Shown here is a front loaded truck with a transfer cart.

double

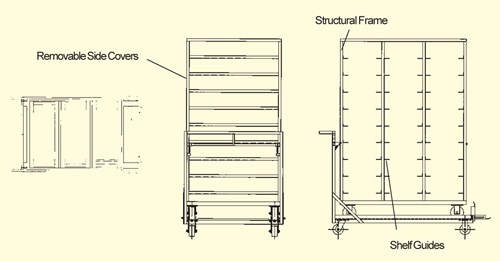

Triple-Bay Truck (side loaded)

Triple-bay trucks are used with medium to large sterilizers and dryers. The truck shown here has removable side panels to protect the product from contamination during transportation. Portable laminar flow units are also available to protect the product.

triple



Construction

  • Fabricated of fully welded structural steel.
  • Assure the processing of full loads in the most efficient manner.
  • Roll on six heavy-duty rigid casters.

Shelves

  • Three, removable, angle-framed and reinforced expanded metal shelves.
  • Optional construction customized to handle your heavy loads.
  • Additional shelves may be ordered by truck model number.

Finish

High temperature black paint is standard on our structural steel trucks
