Gruenberg Ships One Vivarium Sterilizer to the Lab Animal Science Industry

Posted: Jan 08, 2020

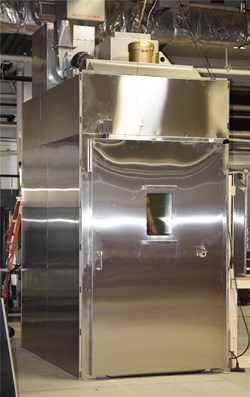

Thermal Product Solutions, a global manufacturer of thermal-processing equipment, announced the shipment of a Gruenberg Vivarium Sterilizer to the Lab Animal Science industry.

Trim panels were fitted to cover the area between the wall opening and the unit so that a flush appearance was achieved. The trim panels are held in place by magnets on the back of the panel to simplify the installation. This provides an impassable barrier to rodents on the top and sides of the unit.

A pneumatically locked, single load door was provided with a viewing window for clear visibility into the working chamber. The quadruple insulated window is cool to the touch and has a protective panel to shield from damage. Interior lighting was also added to increase visibility inside the chamber.

Seamless-tubular incolloy type heaters, that produce a high energy, efficient output, supply the electric heat. The heaters are suspended in the plenum, adjacent to, but separate from the process chamber, so that work in progress and operators are protected. Terminal ends are inserted through the walls of the unit and use sufficient dead zones so that heat is not generated beyond the plenum. A high volume, horizontal airflow system is installed in the unit to ensure uniform heat distribution throughout the work chamber and optimize efficiency. This dry heat technology will not degrade cages and significantly reduces overall maintenance costs compared to autoclaves.

A 10” touchscreen HMI with PLC were installed to control the sterilizer. The control console was designed to be free standing with a wiring harness for ease of relocation and accessibility. The HMI supports data logging so that cycle data may be analyzed for research or quality purposes. A communications module was also added to the controls for quick access to Ethernet and USB ports to connect to the HMI interface.

“The sterilizer featured modular construction which allows the customer to work around their architectural restrictions while maximizing chamber space. The interior and exterior feature a stainless-steel finish for ease of cleaning and maintaining sanitary conditions.

– Jonathan Young, Gruenberg Product Manager

Unique features of this Gruenberg Sterilizer include:

  • Stainless steel 304 with a #4 finish exterior

  • Fully welded 304L stainless steel interior liner

  • Protective chamber side rails

  • Plate floor

  • Pneumatic door lock with interior override

  • Interior lighting

  • Vermin seals

  • Modular construction for ease of installation

  • Intake and Exhaust HEPA filtration

  • Powered exhaust for fast and effective cooling

  • UL labelled control panel

  • HMI with PLC controls

  • Disconnect switch

  • Panel mounted thermal printer

  • Communications interface module
