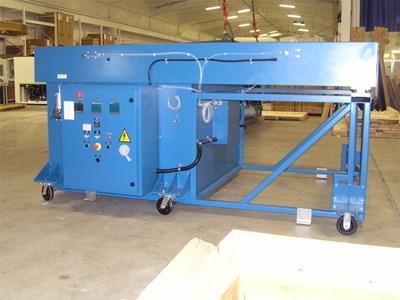

Thermal Product Solutions Ships Gruenberg Top Loading Oven to an Advanced Technology Supplier

Posted: Aug 08, 2017

Thermal Product Solutions, a global manufacturer of thermal-processing equipment, announced the shipment of a Gruenberg Top Load oven to an advanced technology supplier. This top load oven will be used for heating steel products.

The maximum temperature rating of this heat- treating oven is 650°F and the work chamber dimensions are 45” W x 45” D x 50” H. A high volume, compound horizontal airflow system was utilized to insure uniform heat distribution throughout the oven chamber and optimize efficiency. Based on a nine-point thermocouple survey before shipment in an empty, stabilized chamber, the final temperature uniformity of this oven is ±5°F at 605°F.

This Gruenberg top loading oven is designed to heat the work chamber to 650°F in approximately 3 hours with a steel load weighing 7,500 lbs. The oven floor was reinforced to support the heavy load weight. An automating horizontal sliding lid provides easy loading and uploading for the operator.

“When designing this top load oven, we utilized the high volume horizontal airflow system to make sure the equipment achieved the uniformity and heat up rate the customer required. The weight of the load also needed to be considered, so we added a reinforced floor that could withstand the heavy loads.” Blake Lawson, Sales Process Manager

Unique features of this Gruenberg top load oven include:

  • Automated horizontal slide door

  • Eurotherm Controller, high limit, and product limit

  • High volume compound horizontal airflow system

  • Uniformity of +/- 10°F at 600°F (Final uniformity was +/- 5° at 605°F)

  • Thermocouple jacks

  • Reinforced oven floor
